2003-2009 GX470 Dual Shock Hoop Kit

Enhance your vehicle's suspension performance with these Secondary Shock Hoops, designed to maximize dampening control and custom tunability by adding a secondary shock. These 4130 chromoly pre-bent shock hoops are compatible with 2.5" or 3.0" bypass shocks and reinforce the factory coil bucket for increased strength. The low-profile design ensures clearance, preventing contact with the inner fender well.

The flush-mount top plate allows for compatibility with shocks using either bolts or studs on the upper mount, eliminating the need to trim the inner fender well for installation. Upper shock tabs come tacked in place to assist with setup, but welding is required to complete the installation. This system is specifically designed for TC Long Travel systems as well as Expedition Series and Race Series stock-length lower arms.

Key Features:

• Allows installation of a secondary bypass shock for increased dampening control.
• Constructed from 4130 chromoly for strength and durability.
• Low-profile design ensures clearance from the inner fender well.
• Flush-mount top plate works with shocks using bolts or studs on the upper mount.
• Upper shock tabs pre-tacked for easy setup; welding required for final installation.
• Specifically designed for TC suspension systems and compatible lower arms.
• Includes Grade 8 hardware for a secure installation.

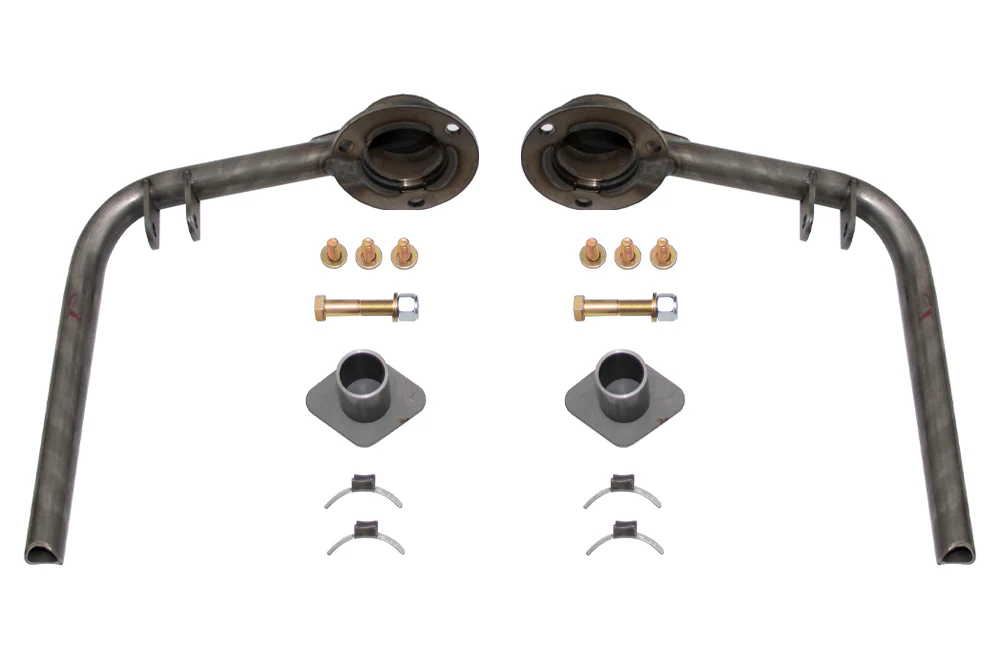

Kit Contents:

• Secondary Shock Hoops – QTY: 2
• Shock Hoop Frame Mount Plates – QTY: 2
• Reservoir Mount Tabs – QTY: 4
• Grade 8 Hardware Kit
