2003-2024 4Runner Panhard Correction Kits (PCK)
Built by: EimKeith
In stock and ready to ship
- This Panhard Correction Kit returns the Panhard bar to horizontal (per original design), eliminates the need for an aftermarket adjustable Panhard bar to recenter the axle, and in most cases (up to 4 inches of lift) raises the roll center for improved handling (4-4.5 inch lift maintains the roll center of an adjustable panhard).

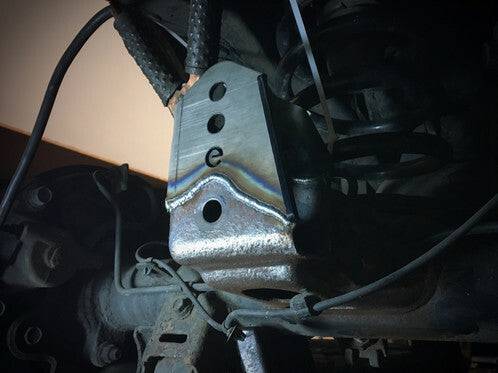

- The axle-end (lift) bracket is cut from 3/16" plate to match the thickness of the factory mount and contoured for easy alignment to the existing axle mount with minimal fitting.
- The lift bracket raises the axle-end of the Panhard bar 2 inches by itself, without interfering with the frame under full flex with factory bump stops in place.
- It is contoured for slide-over alignment with the existing frame mount with minimal fitting, using the factory pivot bolt hole for proper location.
- This kit requires welding.
$34.37
Original: $98.20
-65%2003-2024 4Runner Panhard Correction Kits (PCK)—
$98.20
$34.37
Description
Built by: EimKeith
In stock and ready to ship
- This Panhard Correction Kit returns the Panhard bar to horizontal (per original design), eliminates the need for an aftermarket adjustable Panhard bar to recenter the axle, and in most cases (up to 4 inches of lift) raises the roll center for improved handling (4-4.5 inch lift maintains the roll center of an adjustable panhard).
- The axle-end (lift) bracket is cut from 3/16" plate to match the thickness of the factory mount and contoured for easy alignment to the existing axle mount with minimal fitting.
- The lift bracket raises the axle-end of the Panhard bar 2 inches by itself, without interfering with the frame under full flex with factory bump stops in place.
- It is contoured for slide-over alignment with the existing frame mount with minimal fitting, using the factory pivot bolt hole for proper location.
- This kit requires welding.
